How to Install a TOTO WASHLET: Outlet Requirements, What to Do Without One, and Mistakes That Cause Leaks
Most people can install a TOTO WASHLET themselves in about an hour. The seat clips onto a plate, and the water comes from your toilet's own supply line. What stops most installs isn't the plumbing, it's the outlet. This guide goes through what TOTO's own installation manual for the WASHLET S2 and S5 requires, what to do if your bathroom has no outlet near the toilet, and the small mistakes that cause leaks and "it stopped working" calls. Other WASHLET models follow the same pattern, but always check your model's manual.

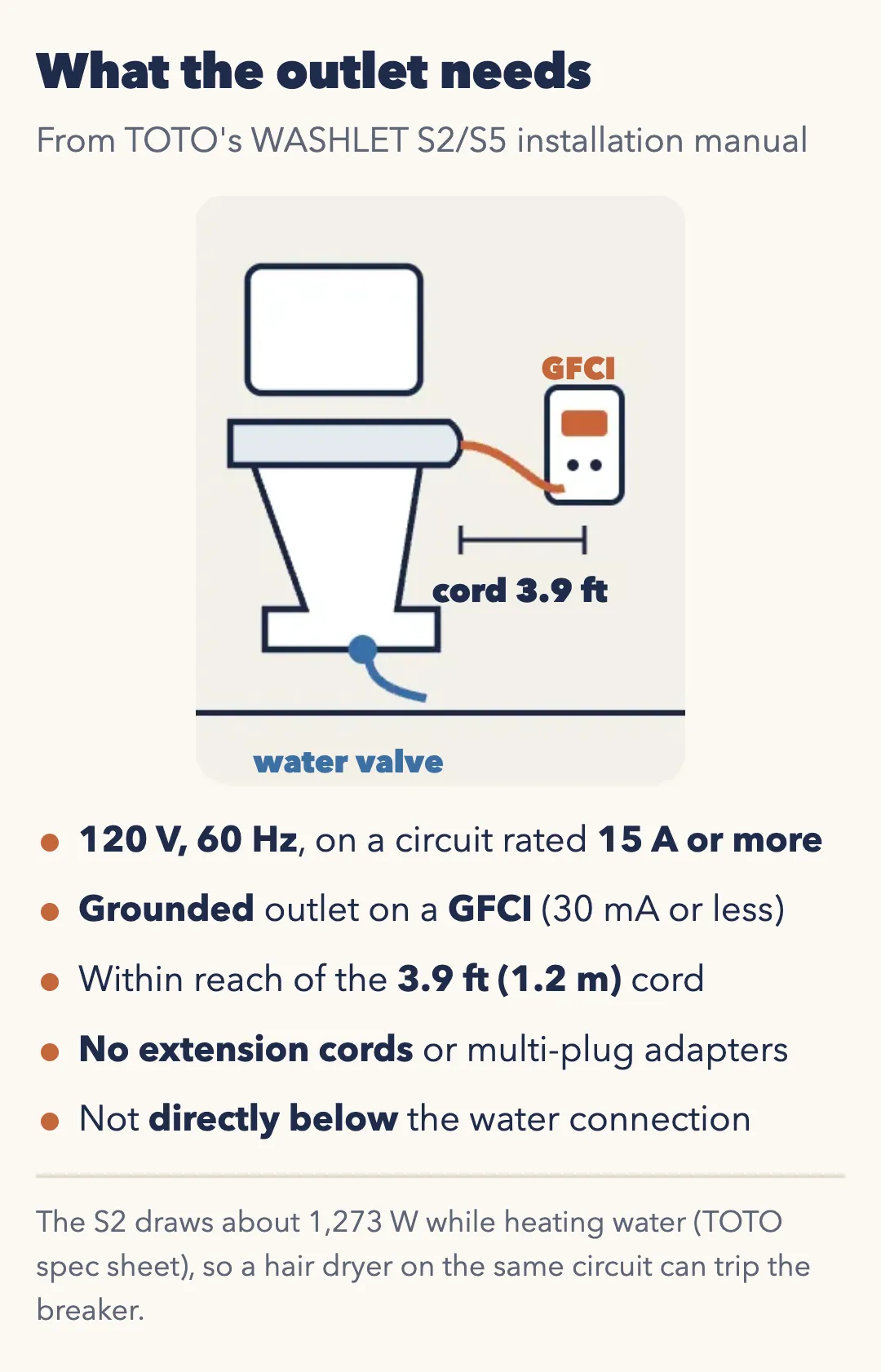

What the outlet needs
- GFCI is required, not optional. The manual says to always use a grounded outlet connected to a ground fault circuit interrupter (30 mA or less). Most bathroom outlets built to modern code already are; press TEST and RESET to check.
- The cord is short. It is 3.9 feet (1.2 m), and TOTO tells you to check that the outlet is within reach before you start.
- No extension cords or splitters. The manual warns that running several devices from one outlet with an extension cord or adapter can overheat and cause a fire.
- Keep the plug away from water. Don't put the outlet directly under the water connection, and don't let the water hose touch the plug.
- Mind the circuit. The S2's spec sheet lists 1,273 W of power consumption (1,428 W max) for instant water heating. If the bathroom circuit also runs a hair dryer or space heater, using both at once can trip the breaker. TOTO's spec sheet also recommends surge protection; ask an electrician for an option that doesn't involve a plug-in power strip.

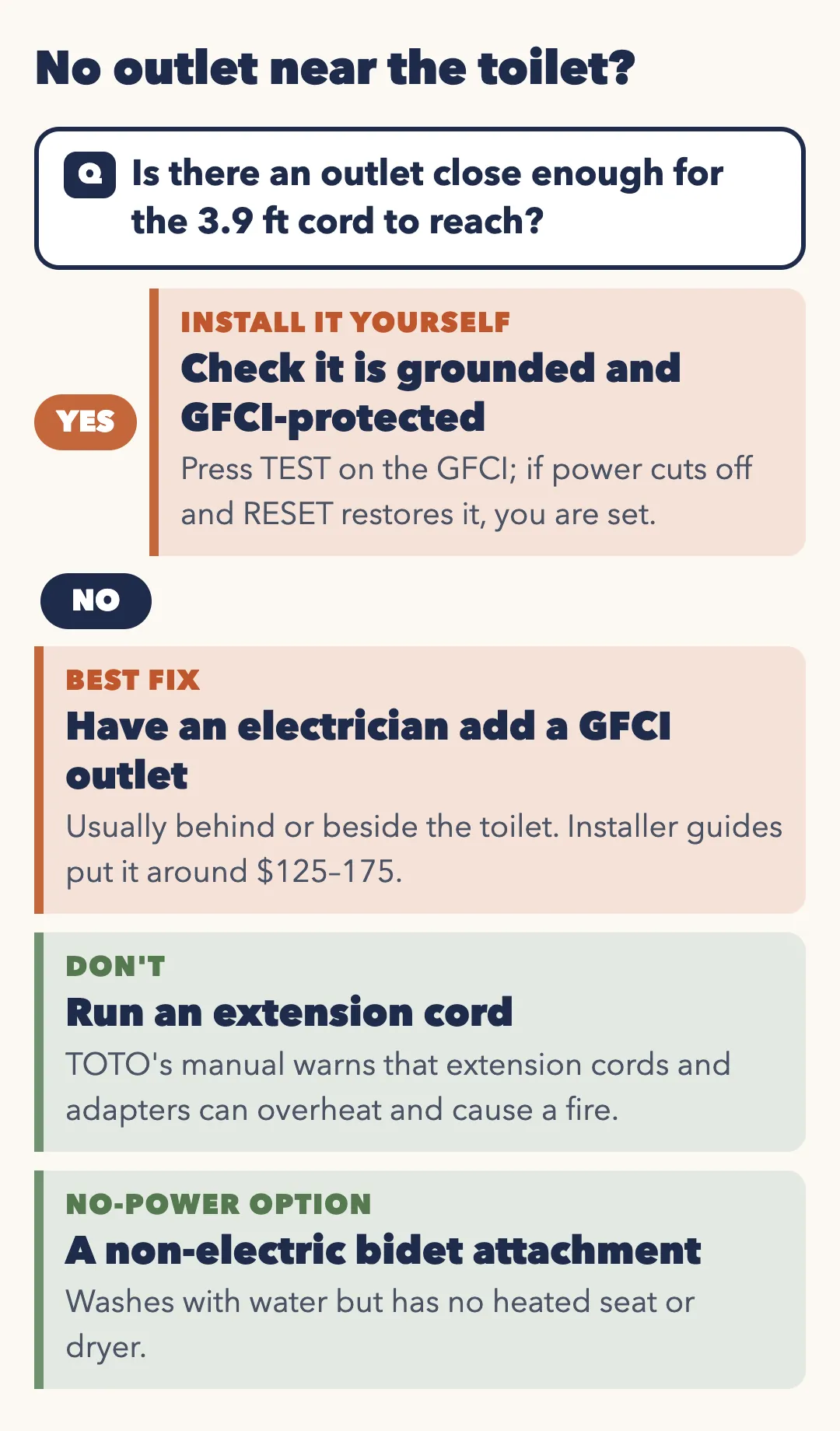

No outlet near the toilet?
This is the most common reason people put off a WASHLET. Adding an outlet beside the toilet is usually a small job for an electrician; one installer guide puts it at roughly $125 to $175 (Many Bidets), but the price depends on how far the nearest circuit is. Book the electrician first and install the seat after. If adding an outlet isn't possible, for example in a rental, a non-electric bidet attachment gives you the wash without the warm seat or dryer.
The water side
- Cold water only. The owner's manual says to always connect to the cold water supply; hot water can cause burns and damage the seat. The seat heats the water itself.
- Use the parts in the box. TOTO says not to use water supply hoses or a junction (T) valve other than the ones supplied.
- Water pressure. The manual's range is 7.25 PSI (dynamic) to 108.75 PSI (static), which covers most homes.
- Rigid supply tubes. If your toilet tank is fed by a rigid metal or copper tube, plan to replace it with a flexible supply line.
- Don't kink the hose. A folded or crushed hose can leak.
Installing it, step by step
TOTO's manual is mostly drawings, so here is the sequence in words. Don't turn on the water or plug in until the installation is complete.
1. Shut off the water and empty the tank
Close the shut-off valve behind the toilet, flush, and hold the handle to drain the tank. Put a towel under the valve.
2. Remove the old seat and fit the base plate
Unbolt the old seat and attach the WASHLET's base plate through the same holes. Center it so the seat lines up with the bowl.
3. Fit the T-valve
Remove the tank's supply line from the shut-off valve, screw the supplied T-valve onto the valve, then reconnect the tank line to one side. Hand-tighten, then snug with a wrench.
4. Slide on the seat and connect the hose
Push the seat onto the base plate until it clicks, then pull it gently toward you to make sure it doesn't come off, as the manual instructs. Connect the supplied hose from the seat to the T-valve.
5. Turn on the water and check for leaks
Open the shut-off valve slowly and check every connection. A drop or two from inside the seat at first can be normal: TOTO notes that each unit is water-tested at the factory, so some water may remain inside.
6. Plug in and test
Plug the cord all the way into the GFCI outlet, sit down to activate the seat sensor, and try each function.
If you'd rather not do it yourself, a plumber or handyman usually finishes in under an hour; one installer guide estimates about $135 for the visit (Bidet King).
Problems new owners hit, and the fix
| Problem | Likely cause and fix |
|---|---|
| Nothing works | The GFCI tripped or the plug is loose. Press RESET on the outlet and push the plug all the way in. |
| The wand comes out but no water, or weak spray | The shut-off valve isn't fully open, or the supply filter is clogged. Open the valve fully; clean the drain plug with water supply filter (TOTO suggests about every 6 months). |
| The seat doesn't sense you, or the lid misbehaves | A fabric seat or lid cover. TOTO says covers can't be used because the seat switch may not detect you. |
| The seat isn't warm | The energy saver is on. It lowers the seat temperature when the toilet is rarely used; turn it off or adjust the timer. |
| Leak at the T-valve | Shut off the water, then reseat and retighten the connection. Make sure you used the supplied T-valve and hose. |
| The breaker trips | Another high-power appliance is on the same circuit. Ask an electrician about the circuit's load. |
Cold climates and long trips
If the bathroom can drop to freezing (32 °F / 0 °C), frozen water can crack the seat and hoses. TOTO's manual says to keep the room warm enough or drain the water. Before a long absence, close the shut-off valve, drain the seat as the manual describes, and unplug it. TOTO also warns against using its energy-saver mode in a room that can freeze.
Ready to choose a seat?
The S2 is the model most people should start with; the S5 adds a wall remote. Compare the whole lineup in our TOTO WASHLET guide, see what each feature does in How to Get a Japanese Toilet at Home, or if you're replacing the toilet too, see TOTO Drake + WASHLET.
